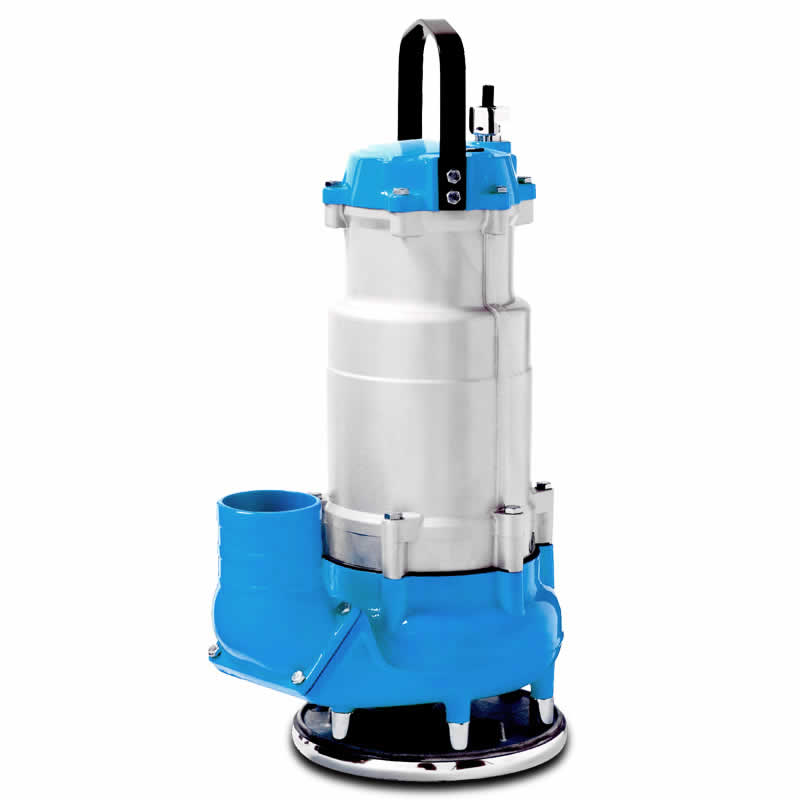

SP 80 Submersible Sludge Pump

Name: SP 80 Submersible Sludge Pump
Brand: Khansaheb Sykes
SKU: ASUAE-317
Price: 1 USD
Availability: InStock

This 8.0 kW pump delivers great performance where liquid with an amount of solids up to 45mm needs to be moved, or where the viscosity is greater than water alone. Unlike some larger units, the SP 80 is suitable for areas where space is limited because of its small dimensions and lightweight construction.

Key Features

Feature

Cast Aluminium body

Cast Iron vortex

impeller

High wear resistance

Highly reliable

No vibration

smooth running

Can run dry

Built in motor

protection

4” Discharge

Solids handling up

to 45mm dia.

Standardized design for

minimal service and maintenance

Light

weight materials for easier portability

Simple installation

High head and

high volume versions

Plug and pump

Small size for

access in to confined areas

415V, 8 kW

motor

Low noise and

no fumes

Max Head 33

metres

Max Flow 28

litres/sec.

Product Specification

Weight (kg) : 67
Motor Type (V) : 415 (3-phase 50Hz)
Dimensions (mm) : H 810 x, ø 410
Motor Rating (kW) : 8
Discharge Spigots : 4” Bauer
Running Current (Amps) : 16
Max Power Input (kW) : 9.4kW
Cable termination : 32A 4 pin appliance inlet (plug)
Cable length : 20m

Downloads

Accessories

P3000/SP80 LEVEL CONTROL
VARIABLE PANEL 1KW TO 15KW
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES

Environments

Building site drainage and wastewater diversion
Effluent control
Clean and dirty water pumping
Tunnelling
Dirty and nuisance water pumping
Wastewater process systems
Industrial processes
Food, fruit and Vegetable preparation processes
Power Stations
Agriculture
Utility industries
