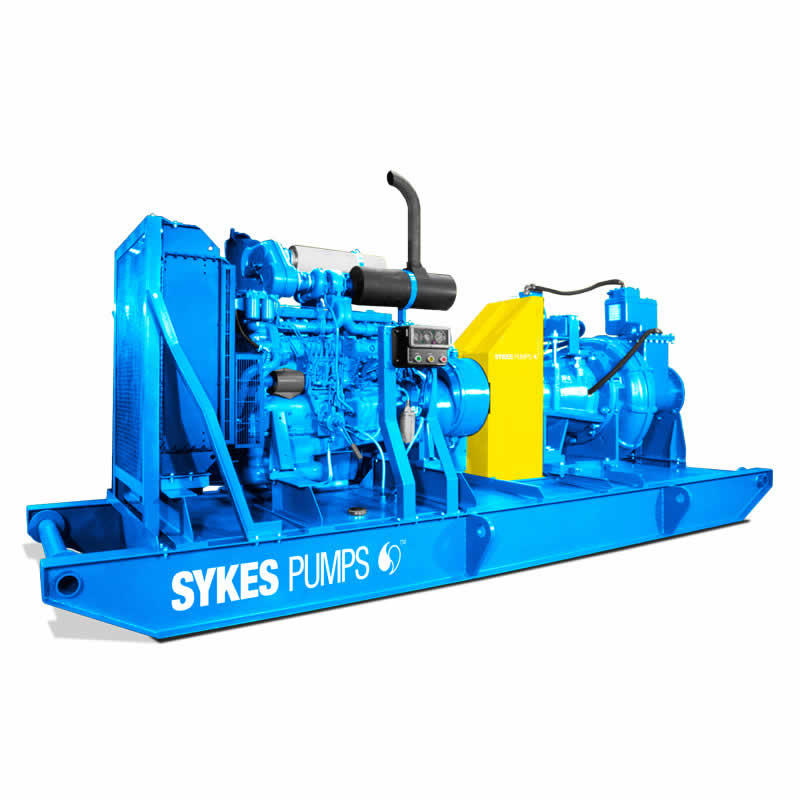

UVO 200/150F D70 Medium & High Head

Name: UVO 200/150F (D70)
Brand: Khansaheb Sykes
SKU: ASUAE-99
Price: 1 USD
Availability: InStock

The UVO 200/150F (D70) is specifically designed for the most arduous high head duties, and has a unique combination of features that provide improved performance, sustained high efficiency and total reliability. All wet end components are manufactured from high chrome iron alloy, providing both excellent abrasion and corrosion resistance.

Key Features

Feature

High chrome iron

pump parts

Hours of unattended

operation

Corrosion resistant

Choice of engines

Easy maintenance

Skid mounted

Automatic priming and re

priming

Product Specification

Weight :8450 kg with fuel, 6320 kg without fuel
Dimension :(LxWxH)mm: 5330x2385x2260
Performance :Max head: 108, Max flow: 325 l/s, Max solid: 60 mm
Fuel Tank Capacity :Tank size on application, separate bunded tanks available.
Fuel Consumption :Typical fuel consumption on full load @ 1800 rpm: 99.9 litres/hour
Chassis :Skid mounted
Pump Materials :Main pump: High Chrome iron/ impeller: High Chrome iron
Pipe Connections :Suction: 8″ Table D, Suction: 6″ Table D, Bauer couplings option
Engine(Type / Power / Speed) :Volvo TWD1210P / 265 kW / 1800 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump, Nominal Displacement 25cfm / Non Return Valve
Shaft Seal :No adjustments necessary, Easy repacking, Optional mechanical seal, Expeller aided vacuum seal, Two rings of packing, High Chrome sleeve
Health and Safety :Ear Defenders, Gloves, Boots, safety footwear, Protective clothing

Downloads

Accessories

8″ INTAKE
8″ 3M W/A BAUER HOSE
8″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ FLANGED HIGH PRESSURE HOSE X 6MTS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ FLANGED NP16 90* BEND
6″ FLANGED NP16 GATEVALVE
6″ NON RETURN VALVE
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Clean and dirty water
Tailing deposit
Heavy Sludge
Slurry transfer
Abrasive Slurry
Ash handling
Pit dewatering
Water boosting
Pipeline filling
Hydraulic sluicing
Pipeline boosting
Quarries
Open cast mines
Construction
Waste water
