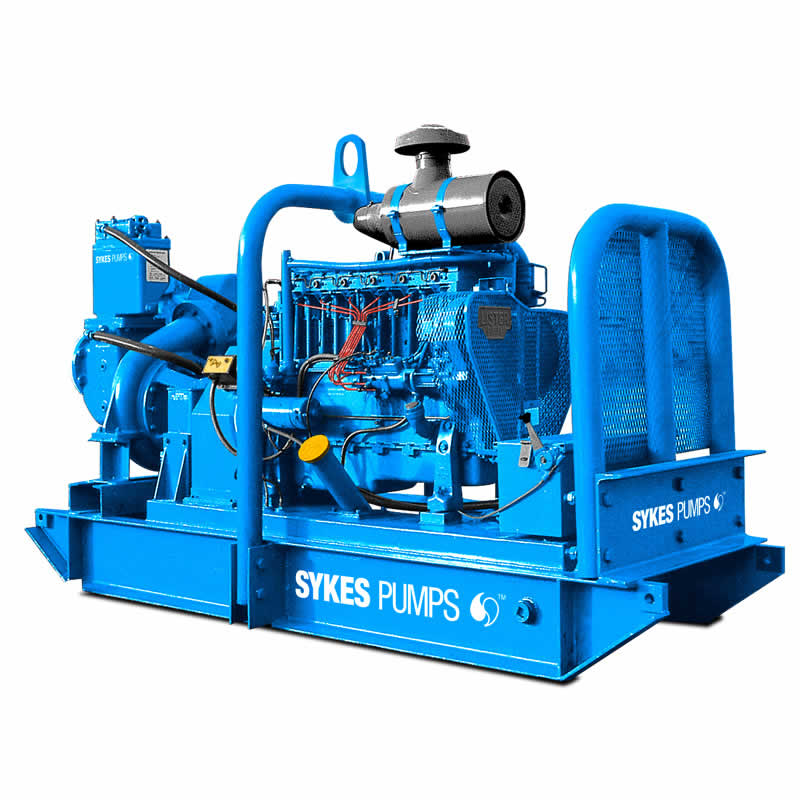

MH 150 Medium Head

Name: MH 150
Brand: Khansaheb Sykes
SKU: ASUAE-97
Price: 1 USD
Availability: InStock

The MH 150 is designed for all general purpose medium head applications and is ideally suited for open cast and quarrying applications. The carefully designed high efficiency impeller gives excellent head and flow characteristics coupled with the ability to handle some solids handling and is perfect for the most arduous applications

Key Features

Feature

Hard wearing cast

iron construction

Hours of unattended

operation

Corrosion resistant

Single point filter

Stainless steel impeller

Skid mounted

Easy maintenance

Automatic priming and re

priming

Product Specification

Weight :2125 kg with fuel, 1805 kg without fuel
Dimension :(LxWxH)mm: 3100x1200x1800
Performance :Max head: 91 m, Max flow: 144 l/s, Max solid: 25 mm
Fuel Tank Capacity :Max 24h running/ Tank Capacity 375 litres/ Cleaning and Flushing Facility
Fuel Consumption :Typical fuel consumption on full load @ 2000 rpm: 26 ltr/h
Chassis :Skid mounted
Pump Materials :Main pump: SG grade iron/ impeller: Stainless Steel
Pipe Connections :Suction: 8″ Table D, Discharge: 6″ Table D, Bauer Couplings Option
Engine(Type / Power / Speed) :Deutz BF6L913 / 86 kW / 2000 rpm, Ford CDT6 / 109 kW / 2000 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 60 cfm/ Non Return Valve
Shaft Seal :Sykes patented vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring
Health and Safety :Ear Defenders, Gloves, Boots, safety footwear, Protective clothing

Downloads

Accessories

4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6MTR STEEL BAUER PIPE
4″ 45* FLANGED NP16
4″ 90*PLANGED NP16 BEND
4″ GATEVALVE
4″ NON RETURN VALVE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
RETAIL GAS OIL
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Clean and dirty water
Open cast mines
Heavy Sludge
Construction
Heavy Slurry
Waste water
Quarries
