3H Jetting Pump

Name: 3H Jetting Pump
Brand: Khansaheb Sykes
SKU: ASUAE-372
Price: 1 USD
Availability: InStock

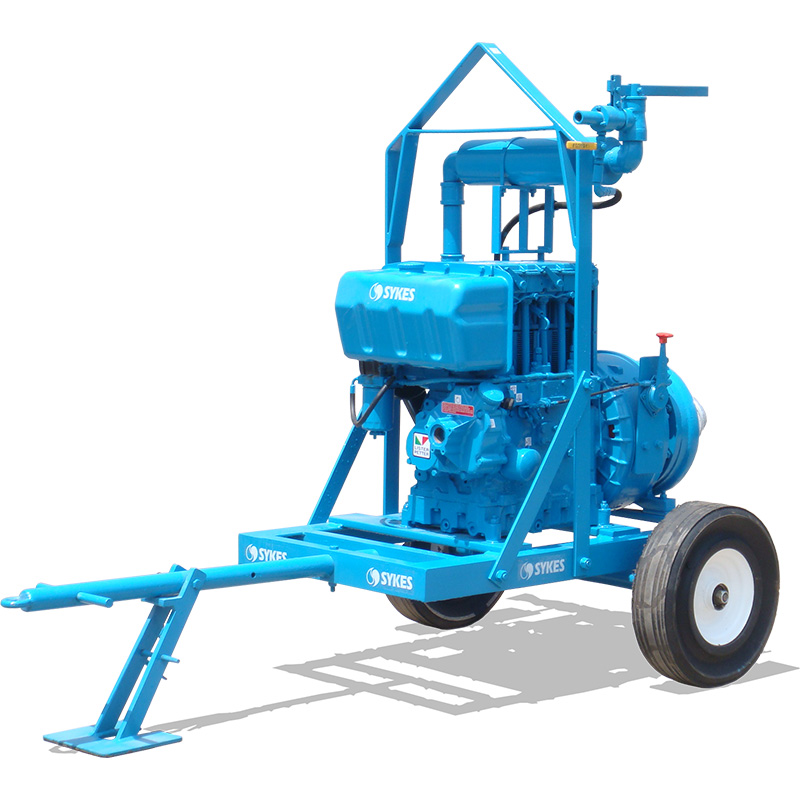

Jetting Pump is an exhaust primed centrifugal pump with 75mm (3″) suction and discharge connections. In standard form the pump is coupled to a Lister TR3 air cooled diesel engine and is mounted on two wheeled site trailer.

Key Features

Feature

Capable of a

total head of over 100m (328ft)

Rapid self priming

down to 6m (20ft)

Single stage, therefore

not affected by problems associated with multi stage pumps

Light compact design,

ideal for site manoeuvring

High Efficiency

Grease lubricated spring

loaded mechanical seal

Corrosion resistant seal

rings

Product Specification

Weight (kg) : 457 kg without fuel
Dimension (mm) : 2000 x 860 x 1400
Noise level : @1m= 94-98 dBA @7m= 77-82 dBA
Performance : Max head
Fuel Tank Capacity : 90lts, maximum 24hr with cleaning and flushing facilities
Fuel Consumption : full load @2800 rpm, 6.2ltrs/hr
Chassis : 2 wheeled site trailer
Pump Materials : Enclosed type Impeller for high efficiency, close grain Cast iron volute with 3” BS table D flanged adaptor
Pipe Connections : Suction
Engine : Lister TR3 air-cooled diesel engine
Prime System : Manually operated exhaust activated
Shaft Seal : Mechanical grease lubricated

Accessories

2.5 INCH X 60FT JETTING HOSE
JETTING STRAINER
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6MTR STEEL BAUER PIPE
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
RETAIL GAS OIL
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Film Production and Events
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Agriculture
