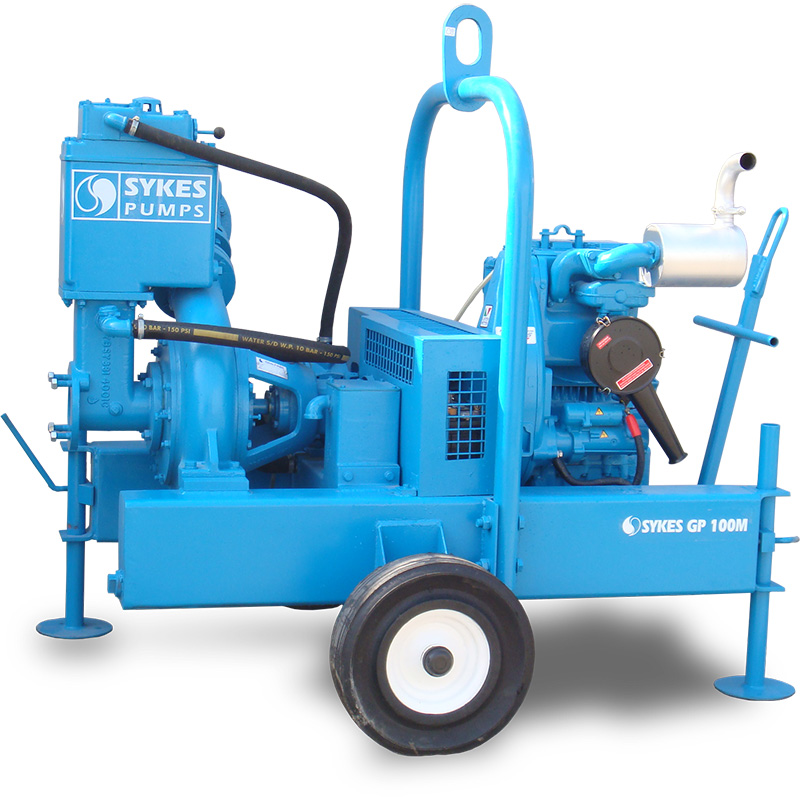

GP 100M General Purpose Pump

The GP 100M is the general purpose industry standard for Construction, Utilities and Civil Engineering. Used wherever there’s a need for positive self – priming, the GP 100M incorporates the unique Khansaheb Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 100M, is powered by a 13.1kw Lister engine. All Khansaheb Sykes General Purpose pumps are available with alternative engines, motors and chassis configurations.

Key Features

Feature

Hard wearing cast Iron parts

Easy to tow

Corrosion resistant

Hours of unattended operation

Available as a four wheeled trailer

Automatic priming and re-priming

Available as skid mounted

Compact and manoeuvrable

Available as a high speed road trailer

Choice of engines

Electric motor option

Easy maintenance

Product Specification

Weight :1011 kg with fuel / 907 kg without fuel
Dimension (L x W x H) :1940x1450x1500 mm,
typical length including tow bar 2620 mm
Noise level :Typical noise level at 1m = 94 – 98 dBA,
Typical noise level at 7m = 77 – 82 dBA
Performance :Max head: 31 m
Max flow: 45 l/s
Max solid: 44 mm
Fuel Tank Capacity :69 or 122 litres.
Max 24 hour with cleaning and flushing facilities
Fuel Consumption :Typical fuel consumption on full load @ 1800 rpm: 3.7 litres/hour
Chassis :4 wheel site trailer / high speed trailer/ Skid mounted / Skid mounted C/w Roll cage
Pump Materials :Main pump: SG grade iron
Pipe Connections :Suction: 4″ table D, Discharge: 4″ table D, Bauer couplings option: 4″
Engine (Type / Power / Speed) :Lister TR2 air cooled diesel engine developing 13.1 kW at 1800 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 25 cfm/ Non Return Valve
Shaft Seal :Sykes patented Vacuum pressure seal
Single ring of packing
Spring loaded
No adjustments necessary
Easy repacking
Chrome oxide coating on wear ring
Optional mechanical seal
Health and Safety :Ear Defenders, Gloves, Boots/safety footwear,
Protective clothing,
Noise power level Lwa: 107 dB

Downloads

Accessories

4″ SPLIT INTAKE
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ LAYFLAT HOSE PER METRE
4″ BLUE LAYFLAT X 25M CW BAUERS
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
RETAIL GAS OIL
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Clean and dirty water
Over pumping
Heavy Sludge
Site dewatering
Heavy Slurry
Quarries
Waste water
