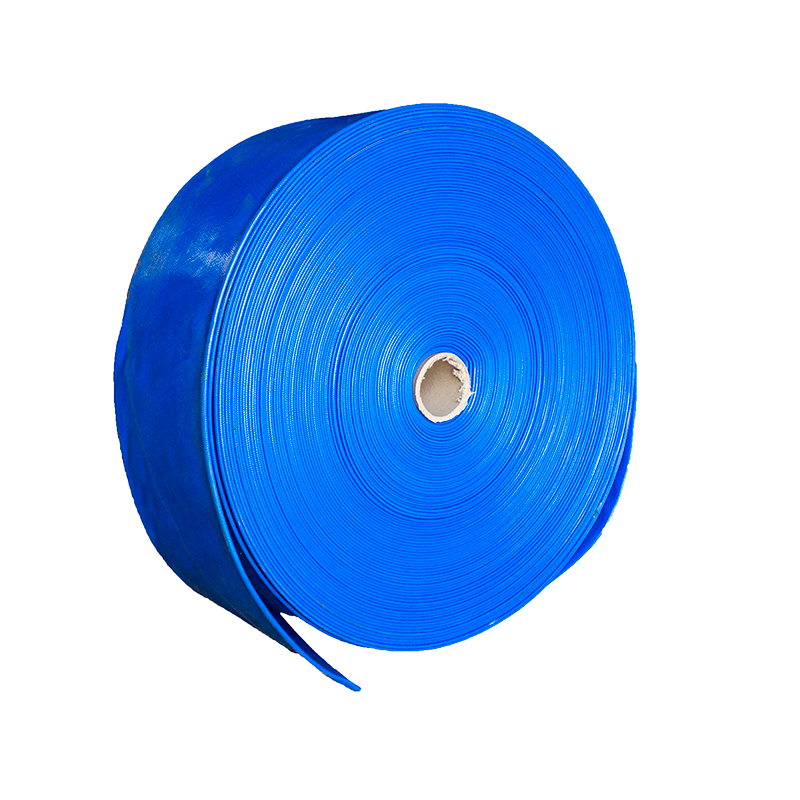

Available in lengths of up to 100 metres when required, Khansaheb Sykes’ layflat hoses are available in several diameters. This type of hose is suitable for both clean and dirty water, but not sewage, and is designed for use only on the discharge side of a pump. Perfect for low pressure applications, our layflat hose comes with Bauer fittings and in 25-metre lengths as standard.
Feature
9kgf/cm2
| Size (inch) | Inner Diameter (mm) | Thickness (M) | Working pressure (kg/cm2) | Burst pressure (kg/cm2) |
|---|---|---|---|---|
| 3″ | 77 | 1.5 | 3.6 | 8.8 |
| 4″ | 103 | 1.5 | 3.6 | 8.8 |
| 6″ | 153 | 2.0 | 3.0 | 8.0 |
| 8″ | 207 | 2.3 | 2.0 | 6.0 |
| Size (inch) | Inner Diameter (mm) | Thickness (M) | Working pressure (kg/cm2) | Burst pressure (kg/cm2) |
|---|---|---|---|---|
| 3″ | 77 | 1.8 | 5.0 | 15.0 |
| 4″ | 103 | 1.8 | 5.0 | 15.0 |
| 6″ | 153 | 2.0 | 4.0 | 12.0 |
| 8″ | 207 | 2.3 | 3.0 | 9.0 |
